Activate the Client. From your Windows desktop, select Start All Programs WatchGuard Mobile VPN Mobile VPN Monitor. At the bottom of the dialog box, click Activation. The License Data dialog box appears. The Activation status shows that the client is not activated. WatchGuard IPSec Mobile VPN Client 2.05 for Mac OS X — Provided by NCP. Released SHA1 73ec1f14d1cf99e5bc0ea7349be1de87a9fe5e08. WatchGuard IPSec Mobile VPN Client for macOS v4.0 (64-bit) — Provided by NCP Released SHA1 038a0f6a7ab22c4cf77fcb46cc82e0b0daf7f1b4. I have successfully been able to get a VPN working using the MUVPN client with IPSec. Now there is a new problem, our graphics people use Mac and our developers use Linux. Watchguard's IPsec client is only for Windows. I have tried IPSecuritas but I can't get it to connect. I have also tried VPN Tracker (the demo) and I was able to VPN with the.

You can configure the native IKEv2 VPN client on iOS and macOS devices for a VPN connection to your Firebox.

To automatically add a VPN profile to your device, you can use .mobileconfig profile that you download from the Firebox. Or, you can manually configure the settings. This topic includes instructions for both automatic and manual configuration.

Fireboxes with Fireware v12.1 or higher support Mobile VPN with IKEv2.

For operating system support information, see the Operating System Compatibility Matrix in the Fireware Release Notes.

WatchGuard provides interoperability instructions to help our customers configure WatchGuard products to work with products created by other organizations. If you need more information or technical support about configuring a non-WatchGuard product, see the documentation and support resources for that product.

Automatically Configure VPN Settings

To automatically configure a VPN connection with a profile provided by WatchGuard, you must download a .TGZ file from your Firebox and extract the contents. This file contains instructions and profiles for different operating systems. For information about how to download this file, see Configure Client Devices for Mobile VPN with IKEv2.

The profile creates a new IKEv2 VPN connection. It also installs the required CA certificate for the VPN connection.

On iOS devices, you must type the user name and password when prompted. If you do not specify a user name and password, the VPN profile is created but does not work.

To automatically add a new IKEv2 VPN profile in macOS:
  1. Send the .mobileconfig file to your macOS computer.
  2. To import the file, double-click it.
    The Profiles dialog box opens.
  3. When prompted to install the profile, click Continue.
  4. (Optional) To save your username and password for later use, specify those credentials now.
  5. Click Install.
  6. When prompted to install the profile, click Install.
  7. From the Apple menu, select System Preferences > Network.
  8. To connect to the VPN, click the VPN connection that you added and click Connect.

Watchguard Ipsec Mobile Vpn Client For Macos

To automatically add a new IKEv2 VPN profile in iOS:
  1. Send the .mobileconfig file to your iOS device.
  2. Open the message in the native iOS mail app and tap the .mobileconfig file.
    A Profile Downloaded message appears.
  3. Tap Settings > General > Profiles.
  4. In the Downloaded Profiles section, tap the profile.
  5. Tap Install > Next > Install > Install.
  6. (Required) Specify the username and password. On iOS devices, if you do not specify credentials in the configuration, the VPN profile exists but fails to connect.
  7. Tap Done.
  8. On the Settings screen, tap VPN.
  9. To connect to the VPN, tap the VPN connection that you added.
  10. Slide the Status toggle to Connecting.

Manually Configure VPN Settings

You can manually add a new VPN connection rather than use the profile provided by WatchGuard.

To manually add a new IKEv2 VPN connection in macOS:
  1. Send the rootca.crt or rootca.pem file to your macOS computer.
  2. To install the certificate, click it.
    The Keychain Access application opens.
  3. Add the certificate to the existing list.

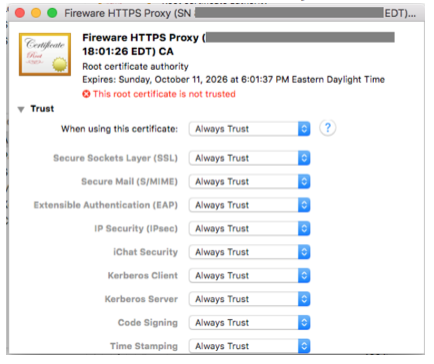

  4. Find the certificate in the list and double-click it.
  5. Expand the Trust menu. Change When using this certificate to Always Trust.
  6. From the Apple menu, select System Preferences > Network.
  7. To add a new service, click the + symbol.
  8. To configure the VPN, specify these settings:
  • Interface: VPN
  • VPN Type: IKEv2
  • Service Name: [Descriptive name such as MyCompany IKEv2 VPN]
  1. Click Create.
  2. On the next screen, specify these settings:
  • Server Address: [Host name or IP address of the Firebox]
  • Remote ID: [Host name or IP address of the Firebox]
  1. Click Authentication Settings and specify the user information:
  • Authentication Settings: Username
  • Username: [Your mobile VPN username]
  • Password: (Optional) To save your password for later use, specify it now.
  1. Click OK and then click Apply.
  2. To connect to the VPN, from the Apple menu, select System Preferences > Network.
  3. Click the VPN connection you added and click Connect.
To manually add a new IKEv2 VPN connection in iOS:
  1. Send the rootca.crt or rootca.pem file to your iOS device.
  2. To install the certificate, tap it.
  3. Tap Settings > VPN.
  4. Click Add VPN Configuration.
  5. To configure the VPN, specify these settings:
  • Type: IKEv2
  • Description: [Descriptive name such as MyCompany IKEv2 VPN]
  • Server: [Host name or IP address of the Firebox]
  • Remote ID: [Host name or IP address of the Firebox]
  • User Authentication: Username
  • Username: [Your mobile VPN username]
  • Password: [Your mobile VPN password]
    On iOS devices, if you do not specify credentials in the configuration, the VPN profile exists but fails to connect.
  1. Tap Done.
  2. To connect to the VPN, on the VPN screen, slide the Status toggle to Connecting.

See Also

WatchGuard Support Center
NOTE: This is for informational purposes only.

Watchguard Ipsec For Mac Windows 7

NOTE: This is for informational purposes only.

NOTE: This is for informational purposes only.

Watchguard Ipsec For MacWatchguard ipsec vpn client for macos
Operating System Files

Released 10/24/2013 · SHA1 75edfa4250537efcca1ea6623ba5b7c34f578580

Watchguard Ipsec Vpn Client For Macos

Released 10/24/2013 · SHA1 1137fa74bbea044e346e1f7230eef7bda367fa92

Management, Logging, Reporting Software

Released 10/10/2013 · SHA1 044bea36cb20fba16ad4cd40e2251fea1f27727d

WatchGuard Mobile VPN with SSL Software

Released 05/16/2013 · SHA1 7290e7d6de285bbc6c96f077087bc5cbd49fc11c

Released 05/16/2013 · SHA1 3e529f7ff0e447c9bf5934b49782e8faaed242e6

Mobile VPN with IPSec Software

Shrew VPN Client 2.2.0 for Windows — Provided by Shrew Soft, Inc

For connections to a WatchGuard device that runs Fireware XTM OS v11.3.4 or higher

WatchGuard IPSec Mobile VPN Client 11.32 — Provided by NCP

Released 03/20/2014 · SHA1 3dd04c0e77974d1aa00df1950a19fbd6ed5f477f

License required for this premium client. 30 day free trial available with download.

Mac

WatchGuard IPSec Mobile VPN Client 2.05 for Mac OS X — Provided by NCP

Released 01/08/2014 · SHA1 73ec1f14d1cf99e5bc0ea7349be1de87a9fe5e08

Updated July 30, 2014. License required for this premium client. 30 day free trial available with download.

WatchGuard Mobile VPN License Server (MVLS)v1.03 — Provided by NCP

Released 07/30/2014 · SHA1 3f4a6f789b6216c4289d0ec8c281bc95d6a6eedb

For Windows Server 2003 or higher. See http://www.watchguard.com/mobilevpn-activation/.

Watchguard Ipsec For Mac Os

WatchGuard® Single Sign-On (SSO) Agent & Client Software

Released 10/10/2013 · SHA1 e25bb0724dddc940abb5421b5886f53b2a120b83

Released 01/10/2013 · SHA1 b2778aba39e8ffe698c2a9a13f0e1df0dd887de2

WatchGuard® Terminal Services Agent Software

Released 08/08/2013 · SHA1 fb35ed99c97e7d9b33048d3b553970669e7a0ada


Watchguard Ipsec For Mac
Current Software for XTM 21, 22, and 23 devices >>
Get WatchGuard Dimension

With WatchGuard Dimension, you can monitor and report on the security of your network. Go here to download Dimension installation and upgrade files.

About WSM Versions
If you use WatchGuard System Manager (WSM), make sure your WSM version is equal to or higher than the version of Fireware installed on your Firebox or XTM device and the version of WSM installed on your Management Server.
